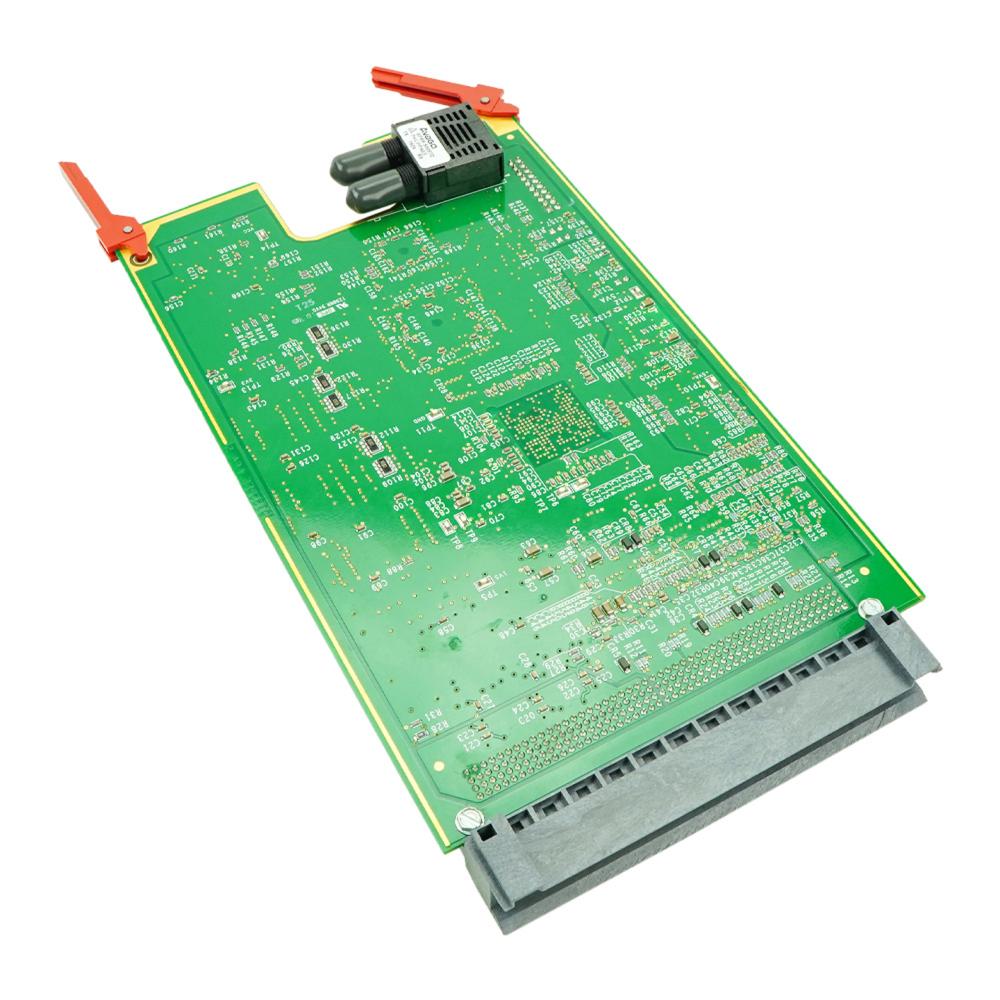

CTe GDAS DCP Card Assembly - RoHS
| 5122521-2 | |
| 5122521 | |
| Computed Tomography (CT) | |
| Brivo CT315 | |
| GE HealthCare | |
Add to Wish List
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Product Overview
The GDAS DCP is the main control board for the CT/e, 1/2 -Slice GDAS (Global Data Acquisition System). It packages all the converter card data into a single high-speed serial data stream and sends it to Operator Console (OC), compatible with the receive function on the DASIFN at 95/110Mbps slip-ring communication. DCP communicates with OGP to get scan commands, status and error log information. It sends commands to converter cards through CAN protocol. Also it provides an X-Ray beam tracking in dual slice system to ensure the right dose for A slice and B slice on the detector. This board is made up of FR-4 Glass fiber, a composite material that consists of glass fabric, electrical grade epoxy resin. The DCP card is mounted on CT Gantry DAS left backplane PWA, with chassis box assembly cover, and peer with GDAS converter card. This board can be used with Brivo 315 and Brivo 325 systems.
Equivalent Item(s):
Below is more information on the equivalent item(s). Items without a hyperlink are listed for reference only and are not available for purchase online.
| Equivalent Item(s) | Item Details |
|---|---|
| 5122521 | 5122521 |
