Connector Board Assembly 3PP
| 5314411-3 | |
| 5314411 5314411-2 | |
| Ultrasound | |
| LOGIQ P3 | |
| GE HealthCare | |
Add to Wish List
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Product Overview

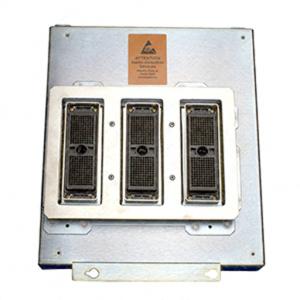

The Connector Board Assembly 3PP (3 Probe Port) is a part of GE ultrasound machines. The assembly includes Connector Board with 3 Probe Port, EMI Cover, Shield Fingers, Screws and ESD Paper Sticker. These parts are assembled togeather to form the complete assembly. The connector board comes with 3 Probe Ports which are connected to 3 banks of relays, one each for each relay bank. It has one FPGA that acts like a buffer for the Probe related signals and is the interface between the probe and the main Transmitter Board FPGA. There is a I2C slave also implemented on this FPGA that responds and interfaces with the TX board for probe selection and control. The Power supply to the TX board from the PDB board is connected via the Connector Board. The circuit board is 12 layer board made up of a flame retardant glass laminated FR4 material. A steel,cold rolled close annealed cover is used in the assembly. It is zinc plated to add more corrosion resistance to the surface of the cover. The shiled fingers are used to fullfil the shielding and grounding needs of the connector interfaces. The assembly can be used with GE's Logiq P3 Ultrasound systems.
Equivalent Item(s):
Below is more information on the equivalent item(s). Items without a hyperlink are listed for reference only and are not available for purchase online.
| Equivalent Item(s) | Item Details |
|---|---|
| 5314411 | |
| 5314411-2 |
