Cable TS IMS Rear Positioning Global Table (GT)
| 5330781 | |
| 5120581 | |
| Computed Tomography (CT) | |
| Revolution Ascend | |
| GE HealthCare | |
Add to Wish List
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Product Overview

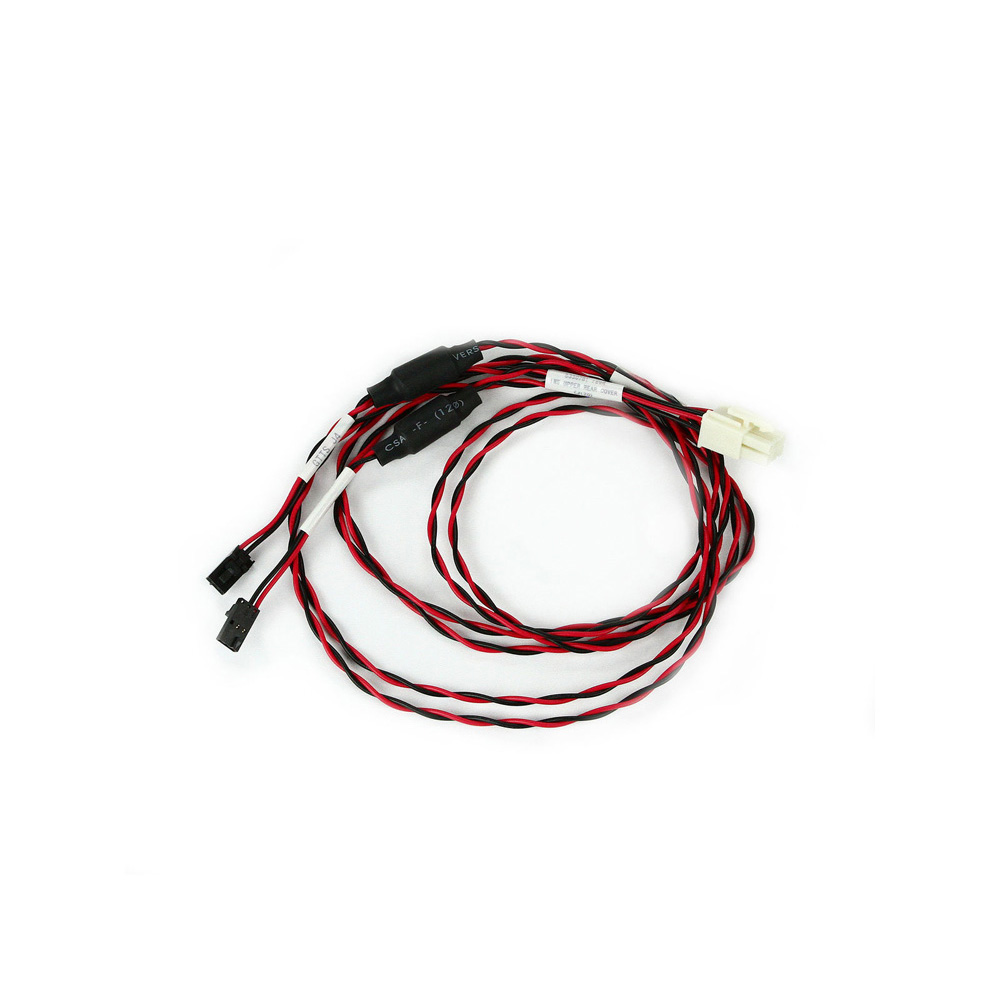

This 1200 mm long twisted pair cable harness comprises of two identical 3 position-1 row connector at one end and one 6 position-2 row connector at the other end. The connection between the connectors are established using a high quality UL1007, 22AWG wires, which are color coded in red and black. This cable assembly is used in the rear positioning Global Table assembly (GTTS) and comes with pre-labeled information about the part number and cable connection. One of the 3 position connector (A1) is to be connected to the GTTS J3 and the other connector (A2) to GTTS J4. The wires from these connectors are passing through two 85 ohms ferrite cores which is covered by heat shrink tube and secured by tie-wraps at both ends. The ferrite core suppresses high-frequency noise, creating impedance for problematic circuits. The wires from connector A1 and A2 goes to a 6 position connector (A3), which is to be connected to the GTTS J120. This cable harness is compatible for use in the assemblies of GT1700 N9 and GT2000 N9 table which are used with GE's Optima 660, VCT, Revolution EVO, Lightspeed RT, Discovery 750 HD, Discovery ST, Discovery ST (64 Slice), Discovery ST (128 Slice) PET/CT Systems.
Equivalent Item(s):
Below is more information on the equivalent item(s). Items without a hyperlink are listed for reference only and are not available for purchase online.
| Equivalent Item(s) | Item Details |
|---|---|
| 5120581 |
