Product Overview

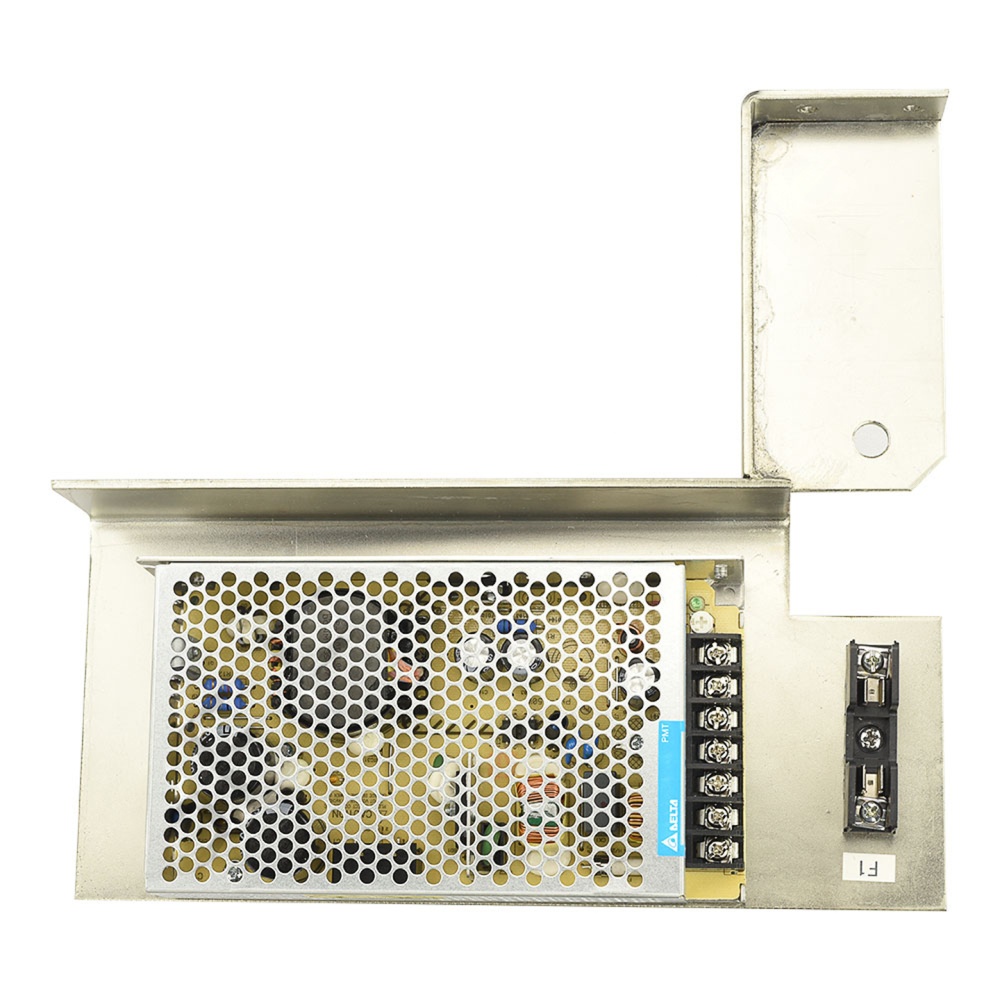

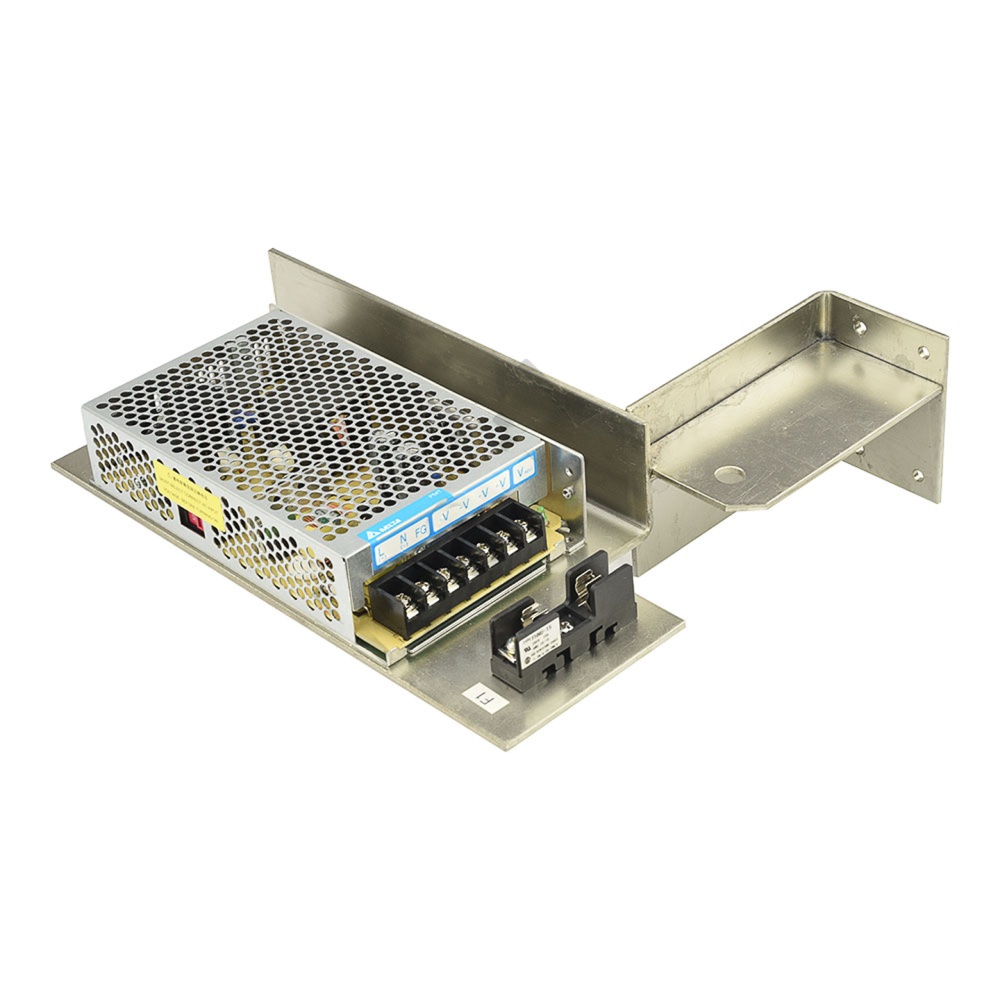

This is a specially designed low voltage power supply module which converts AC input voltage into DC voltage. It is an enclosed, 156W continuous output power supply with +24 VDC output. The power supply accepts input 90-132Vac or 180-264Vac. This switch mode power supply is approved to domestic and international regulatory standards. This single output AC-DC power supply is packaged in an industry standard 178 x 97 x 38 mm package and maintians very low earth leakage currents, making them suitable for a wide range of medical applications. The product offers a wide operating temperature range from -10°C to +70°C and can withstand shock and vibration requirements (in accordance to IEC 60068-2-27 and IEC 60068-2-6 respectively). The power supplies are fully protected against short circuit, overload, over temperature and over voltage. The power supply is attached to a mounting bracket. This assembly is compatible to be used with Proteus XRA X-Ray System.
